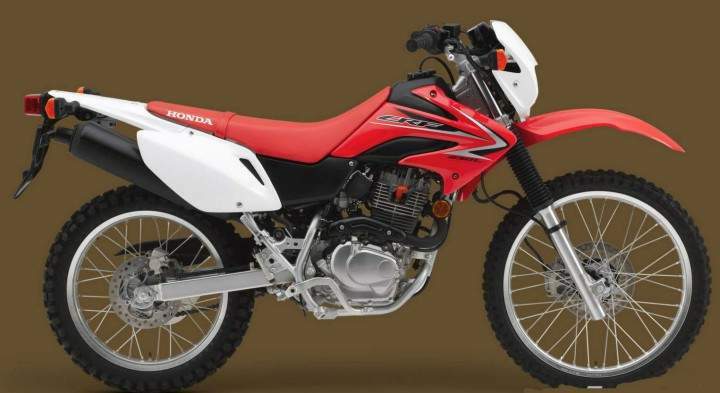

2009 Crf230l
Honda CRF 230L
| Make Model | Honda CRF 230L |
| Year | 2008 - 09 |
| Engine | Four stroke single cylinder, SOHC, 4 valves |
| Capacity | 223 cc / 13.6 cu-in |
| Bore x Stroke | 65.5 x 66.2mm |
| Cooling System | Liquid cooled |
| Compression Ratio | 9.0:1 |
| Lubrication | Wet sump |
| Induction | Single 30 mm CV carb |
| Ignition | CD with electronic advance and lighting coil |
| Spark Plug | NGK, DPR8EA-9 |
| Starting | Electric & Kick |
| Max Power | 18.6 hp / 13.7 kW @ 8000 rpm |
| Max Torque | 18.8 Nm / 1.92 kg-m @ 6000 rpm |
| Clutch | Wet, multiple discs, cable operated |
| Transmission | 6 Speed |
| Final Drive | #520 O-ring-sealed chain |
| Frame | Steel, Single cradle frame |
| Front Suspension | 37mm leading-axle Showa fork |
| Front Wheel Travel | 241.3 mm / 9.5 in |
| Rear Suspension | Pro-Link Showa single-shock with spring-preload adjustability |
| Rear Wheel Travel | 228.5 mm / 8.9 in |
| Front Brakes | Single 240mm disc 2 piston caliper |
| Rear Brakes | Single 220mm disc |
| Front Tyre | 2.75-21 |
| Rear Tyre | 120/80-18 |
| Wheelbase | 1340 mm / 52.7 in |
| Seat Height | 810 mm / 31.9 in |
| Ground Clearance | 241 mm / 9.5 in |
| Dry Weight | 113 kg / 249 lbs |
| Fuel Capacity | 8.6 Litres / 2.27 gal |
Honda�s small in displacement, but large in size 2009 CRF230L stands as an incredible do-it-all motorcycle. First off, it is an economic and fast commuting mean, one that does a very good job exploring the trails and secondly, it is user-friendly and brings full benefits of an e-start and a low seat height. Did I even mention how great it looks? Well�it sure does!
But Honda didn�t spend that much time refining the design as it did in making sure that the bike meets the purpose of its creation. So what do riders look for before ending up choosing the Honda CRF230L?
A torquey 223cc, air-cooled, four-stroke single and six-speed transmission is probably as good as an answer as it is the lightweight semi-double-cradle high-tensile steel frame, but when you add crisp throttle response and Showa long-travel suspensions there isn�t pretty much anything you can ask for. Or not! In this case, the bike is even better overall as it only weights 267 pounds wet and the rider sits 31.9 inches from the ground.
With the headlight, taillight, turn signals and mirrors as the final touches of street-legality, I believe we�re quite familiar with what doest the trick on this CRF model.
Test Ride
We�re used to bulletproof Hondas, machines that are real blasts out on the trails and a little more docile when the straight road opens up in front of them, but in order to complete their dual-purpose lineup, the Japanese manufacturer also builds the CRF230L as a road-legal model which won�t impress your ordinary beginner rider in any way. And no need to as the bike is there to commute and offer the adventure alternative at all times.
That�s the thought that must dominate your brain when meeting the Honda CRF230L in order to get to like it. That was also my thought when pulling the choke for better fuel mixture and hitting the push start button in a cold Sunday morning. The engine, which is fed through a 30mm CV carburetor, started easily and I was soon hitting the streets in an attempt to get familiar with it. Surprise! This bike feels familiar from the moment you get on it, especially if you have been riding the CRF230F before.
The pavement is no challenge for this CRF as the air-cooled, 223cc, four-stroke single pulls anticipatory and the bike is light and implicit easy to handle. The soft suspensions soak up the road�s imperfections and the front and rear disc brakes are highly efficient even in conditions of wet asphalt as the tires aren�t only made for on-road use. Throttle response is very good so as much as you will try, you won�t manage to get a single cough from it.
One of the bike greatest advantages is the fact that it features a six-speed gearbox with wide ratios. This makes for proper exploiting of the fairly small engine and in top gear you�ll even manage to hit 70 mph, but only on the freeway. Although a little vibrating, the CRF remains stable and reassuring when being ridden at its limit.
Take it on the trails and you�ll notice that the docile behavior doesn�t change that much. Probably the only thing that changes is the rider�s perspective on things, but that�s adaptable too. This is where the low seat height proves truly valuable as the feet dragged through the dust save the day most often. Second and third gears are most likely to be used as they allow better acceleration out of corners and greater experience gathered.
The light and versatile chassis makes the difference off the road as long as you keep those wheels down. The Honda CRF230L does indeed feature long travel suspension, but these are soft and you won�t have any troubles experiencing bottoming resistance just when finally getting excited about the bike.
As long as you don�t demand more than you know it can offer, the Honda CRF230L is a great bike, but doesn�t this scenario apply in all cases? Hmm�that�s curious.
Features
Engine/Drivetrain

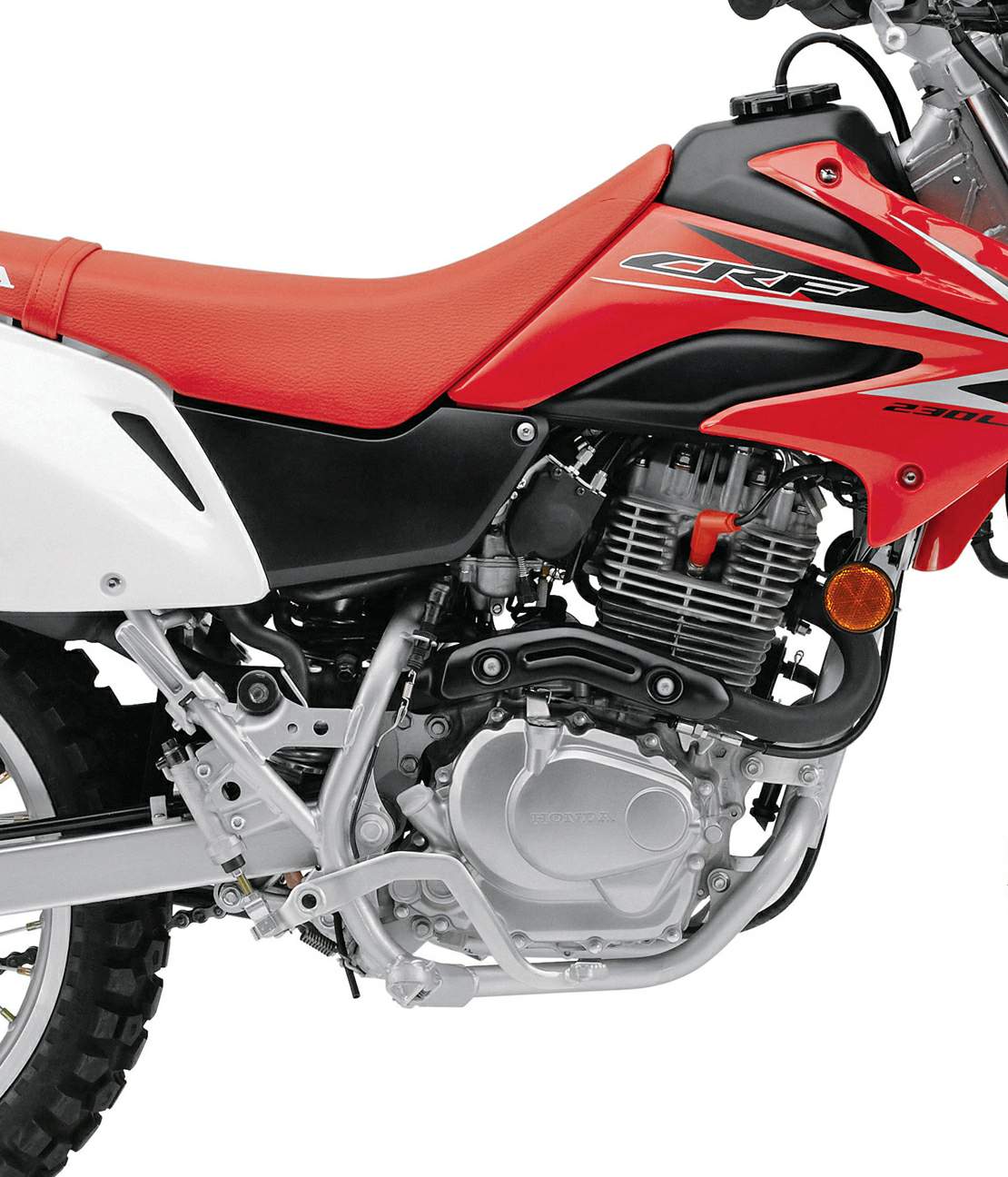

Dependable 223cc single-cylinder air-cooled four-stroke engine offers plenty of user-friendly power and lots of torque spread over a wide rpm range.
30mm CV carburetor for crisp throttle response.
Electric start for easy starting.
Lightweight aluminum crankcase.
Maintenance-free CD ignition.
Heavy-duty clutch offers smooth, progressive engagement.
Smooth-shifting, versatile six-speed transmission.
Heavy-duty O-ring - sealed chain for durability and reduced maintenance.
SUSPENSION
Box-section aluminum swingarm.
Lightweight semi-double-cradle high-tensile steel frame.

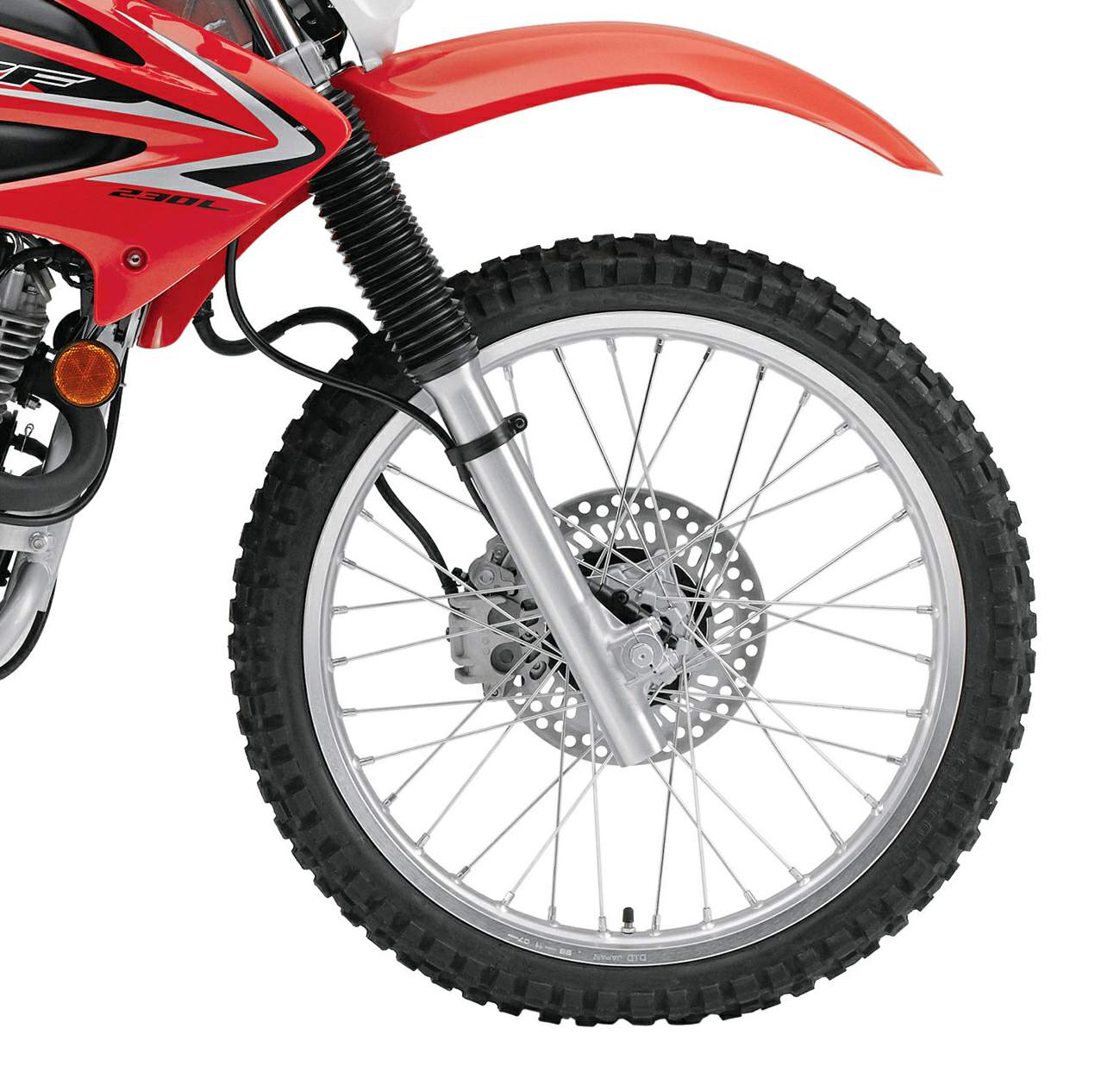

37mm leading-axle Showa front fork offers 9.0 inches of suspension travel.
Fork boots keep dirt and moisture away from fork seals.
Heavy-duty Showa rear shock offers 6.3 inches of travel.
Snail-type chain adjusters for easy maintenance.
Powerful 240mm front disc brake, and 220mm rear disc brake.
Strong, lightweight rims with straight-pull spokes.
Additional Features
CRF�-R-inspired bodywork and graphics.
Motocross-style seat is low and comfortable and allows maximum rider movement.
Durable front and rear steel sprockets.
High-quality handlebar with comfortable grips.
Wide, cleated, folding, self-cleaning footpegs and brake pedal for secure footing.
Quiet, USDA-qualified spark arrester/muffler.
Maintenance-free sealed battery.
Ignition switch key for added security.
Transferable one-year limited warranty; extended coverage available with a Honda Protection Plan.
When you buy a new Honda Powersports Product, you may be eligible to receive a complimentary one year membership in the Honda Riders Club of America, which includes an exclusive Members-only magazine, rider training benefits, access to the Members-only Clubhouse website and much more. Some limitations apply.
Honda Genuine Accessories
Rear Rack.
Hand Guard Kit.
Honda CRF230L and Yamaha XT250
Perhaps it is an idea whose time has come again: small displacement dirt bikes for road and trail. But can an idea that reached its zenith over 30 years ago cut it in the modern world? Maybe so, with Honda�s CRF230L and Yamaha�s XT250. While the rage for retro styled motorcycles continues, our agreed-upon definition means that we only consider bikes that visually emulate their antecedents�usage doesn�t factor into the equation. But there is nothing that captures the �60s and �70s boom in motorcycling quite like small capacity trail bikes. Even the term �trail,� as applied to a segment of motorcycles, is an artefact of the era, but 40 years ago a motorcycle that didn�t have at least some capability off road was an anomaly, and the stock advertising image of the age was a bike sitting amid flowing grasses with a helmet-less young couple smooching as the sun set behind them.
With the idealism of the age, it is startling to reflect that its motorcycles were surprisingly down to earth. The clich� for straight-line performance may be that there is no substitute for displacement, but the inverse is equally true, at least for dirt bikes: there is no substitute for lack of displacement. Agility decreases incrementally for each cubic centimetre of displacement added, so it shouldn�t be a surprise that 1,000 cc motorcycles are pigs in the dirt. But knock displacement down to 250 cc and you needn�t be a Paris-Dakar veteran to be comfortable off road. Beginners of the era learned on lightweight motorcycles that were easy to ride, frugal on fuel, and light-footed in the dirt�attributes that never go out of style, as the two machines on test illustrate.
Advertising literature from both Honda and Yamaha brazenly touts that the CRF230L and XT250 are new, but these play bikes (a hideous term, can we call them trail bikes, please?) do not employ the sophisticated technology that adorns a new sport bike, for instance. The Honda is a street-friendly version of the CRF230F off-road bike, while the XT250 is a generational upgrade of the former XT225. Both engines (223 cc for the Honda, 249 cc for the Yamaha) are air-cooled, single-overhead-cam, two-valve singles. They compensate for their lack of technical sophistication with remarkable robustness: if you pour something remotely flammable into the fuel tank and dump anything slippery into the crankcases they�ll run forever. (The preceding sentence was written with artistic licence, just in case you�re so daft that you�d try burning french-fry grease or lubricating with olive oil. Such frivolity would also void your warranty.)
What is most curious when you ride the two bikes back-to-back is how different they are, despite specifications sheets of virtual unanimity. Seat height for both is 810 mm (31.9 in.) and yet the Yamaha feels the taller of the two, but shorter riders shouldn�t dismiss either bike based on quoted seat height, as both machines are so narrow that it would be hard to fathom an inseam too short.
Front suspension travel on the Yamaha is just a few millimetres less than the Honda�s 228 mm (9 in.), but at the rear the Yamaha has nearly an inch more travel than the Honda at 180 mm (7.1 in.), which contributes to better off road compliance. Additionally, the Yamaha has nearly two inches more ground clearance (285 mm/11.2 in.), which helps while traversing dense terrain. But the Honda has attributes of its own, including a six-speed transmission (the Yamaha is five-speed) with a first gear so low that it�s nearly impossible to stall, and the extra ratio means that there is usually a gear to suit your speed, which reduces the necessity for slipping the clutch if you�re a little too fast for one gear but too slow for the next. The Honda�s lower centre of gravity also makes it more manoeuvrable in the tightly wooded areas we ride through. The Yamaha is the better machine for standing in the rough, as the high-mounted fuel tank gives good purchase for the knees; the Honda fuel tank disappears when you�re standing, making it more difficult to use body English to control the bike.
When we first headed down a paved country road, the tester riding the Yamaha thought that the road had been smeared with grease, as the XT was very unsettling, with the front wheel reluctant to respond to rider input. At the next town we added 10 psi of air pressure to the front tire to bring it to 30 psi, and while it mostly cured the problem, front-end response on the XT never matched the Honda�s stability.
The Honda�s six-speed transmission, which proved so useful off road, was less endearing on the street. In order to keep with traffic flow you needed to shuffle through the gearbox quickly to work your way through closely spaced ratios, just like a dump-truck driver with two tonnes of gravel. The XT would leave the Honda behind on the open road, and while indicated top speed on each machine was 120 km/h, the Yamaha would reach it faster and better maintain it on grades. Lack of weight and not a lot of speed makes it an easy chore for the brakes, and the single disc on both machines is sufficient for the task�not so forceful that it makes braking on dirt terrifying but strong enough for good stopping on pavement. Both rear brakes were prone to early lockup, a decided detriment off road, but a problem that can usually be rectified by adjustment of the lever to allow for less mechanical advantage.
Digital instrumentation on the Yamaha makes it seem the more contemporary design, where the analogue gauges on the Honda look like they�re from a 1970s XR. Less appealing were the Honda�s weedy warning lights that reflected bright sunlight, making it difficult to trust the neutral light. Another area where the Yamaha edged the Honda was in engine smoothness, as the XT�s counterbalancer-equipped engine had less buzz at speed, helped along by overall gearing slightly taller than the Honda.
You might expect that given the information above we would crown the Yamaha the winner of our comparison, but it�s not that straightforward. If you are an experienced rider�and particularly if you�re a six-footer�the Yamaha makes the most sense, especially if riding on public roads is in your future. But at Cycle Canada we�re beefy louts, and one of the riders in this comparison, our unnamed but newly appointed web editor, weighs in at a pro-wrestling-approved 225 lbs, so our bulk makes it difficult for us to appreciate the group that the Honda best suits: young dirt riders on the way up or smaller riders tentatively sticking a foot into the world of motorcycling.
Claimed weights show that the Honda is 121 kg (267 lb) with a full tank of fuel, 10 kg less than the Yamaha, but numbers alone do not reveal all. The weight difference, allied with the Honda�s lower centre of gravity, makes the CRF the much lighter feeling machine, and while we have (finally) mastered working a manual clutch, the ultra-low first gear would be a big confidence booster for first timers and gawky kids learning a motorcycle�s controls.
Used within their capabilities, the XT and the CRF are entertaining motorcycles. While shuffling around town, exploring back roads or trailing down a dusty lane, fun is there to be had. The more relaxed the pace off road, the more rewarding the ride will be, as joy evaporates once the pace exceeds the suspension�s capabilities. At $5,499 each, neither make particular sense as street-only machines, as Honda�s CBR125R is $2,000 less and even Kawasaki�s potent Ninja 250R is more than $1,000 cheaper. But neither of those machines allows you to veer off the pavement down a lonely cow trail, and there are times when just a little less civilization is just what the civilized mind needs.
From the Saddle
Simply put, I�m just too big to enjoy the Honda for any length of time, as it�s too cramped for my frame. I�m more comfortable on the Yamaha, but the viability of either machine requires a hard look at your living situation. As an urban dweller the lack of gumption, particularly from the Honda, would be a drawback. Power, if used prudently, is safety on a motorcycle, but my 185 lb and the aggressiveness of modern traffic would make highway jaunts a chilling proposition.
But if I lived in the mountains of BC, or on Saskatchewan�s prairie, or in the rolling Quebec hills north of Ottawa, either machine would be a logical choice. For those of you who have never veered off the road most travelled, it is surprisingly liberating to nip down a trail between two fields past a sign that says use at own risk just to see what lies beyond the reach of pavement. �Neil Graham
Fun and play are terms often used in motorcycle sales brochures to describe small displacement dual-sports, which is fitting given the inability of these two bikes to tackle anything more serious than a leisurely pace on-road or off. Between the two, I�d take the keys to the XT250. Its plusher suspension, smoother motor and more spacious riding position are better for a large person. It also wins on aesthetic appeal; digital instrumentation and bright white paint make it seem the more contemporary machine.
The Honda suits young adults or those shorter in stature, and while I preferred its more versatile off-road gearing, its harsher suspension and greater vibration made it more tiring to ride. But these criticisms do not mean that these motorcycles won�t find satisfied customers. City dwellers and beginners will find them a viable alternative to scooters or small displacement cruisers and sport bikes. However, limiting these motorcycles to pavement takes the dual out of their purpose. Where they really make sense is in a rural setting where an off-road jaunt can be a daily occurrence.
Source cyclecanadaweb.com
